PIX

Chi tiết sản phẩm

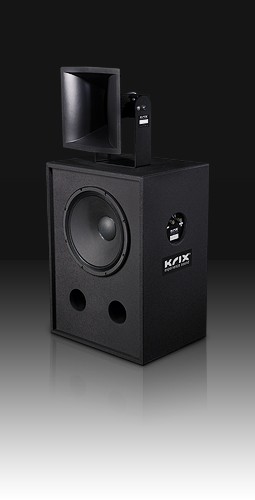

The Pix is a 2 way passive screen loudspeaker system, suitable for small to medium sized rooms. The low frequency section consists of a single 15 inch bass driver housed in a bass reflex enclosure. The electronic filter network is also housed inside the low frequency cabinet and provides connection and crossover facilities to the high frequency section.

The specially engineered bass driver is a professional low frequency loudspeaker and offers superb bass performance, high peak program power handling and high efficiency and is therefore capable of extreme sound pressure levels. The smooth response, wide frequency and dynamic range are features not often found in one model. The bass driver has a massive ferrite magnet structure with components engineered to achieve maximum efficiency. Symmetrical gap geometry, combined with the large linear voice coil travel, ensures minimum distortion at all levels. The driver also features a purpose cast ribbed cone of specially selected paper and treatments which produce extreme bass levels.

The 1¾ inch diameter voice coil, professional compression driver features a ferrite magnet system and a high temperature treated polyethylene dome and suspension. This is attached to a precision lightweight voice coil made from edgewound aluminium ribbon, on a high temperature Kapton former. Mounted to the Krix designed 90º x 40º horn, the HF section sits atop the single 15 inch cabinet via a mounting bracket that offers both vertical and horizontal tilt.

The Pix provides exceptionally high acoustic power output over an extremely wide frequency range, with low harmonic distortion and excellent power handling. This is especially evident in the third harmonic, in the critical 1kHz – 3kHz speech region.
